CHECKING THE VACUUM AT THE UHLE BOXES

Easily compare the vacuum on both tender and drive side of the paper machine. Find a discrepancy? Take away the cause (contamination inside the Uhle box, piping lay-out or valve dislocation) and use the RealVac to confirm your fix was successful.

Version


Measure where it matters: at the Uhle boxes

The vacuum available at the Uhle box can differ tremendously from the vacuum produced by the pump.

Piping, (contaminated) valves, and other consumers connected to the same system will influence the vacuum at every position. Therefore, if you want to check the vacuum at the Uhle boxes there is only one place to measure.

Set the vacuum

The Feltest RealVac is also a very helpful tool to set the vacuum valve on-site when there is no fixed manometer located nearly.


Fill in the form and download the brochure

With the Feltest RealVac it is easy to compare the vacuum on both tender and drive side of the machine. Several factors can cause differences between the vacuum on both sides, like contamination inside the uhle box, but also piping lay-out and location of the valve.

DOWNLOAD BROCHURE

FAQ's

Frequently asked questions about Feltest's portable Uhle-box vacuum manometer:

How does the RealVac work?

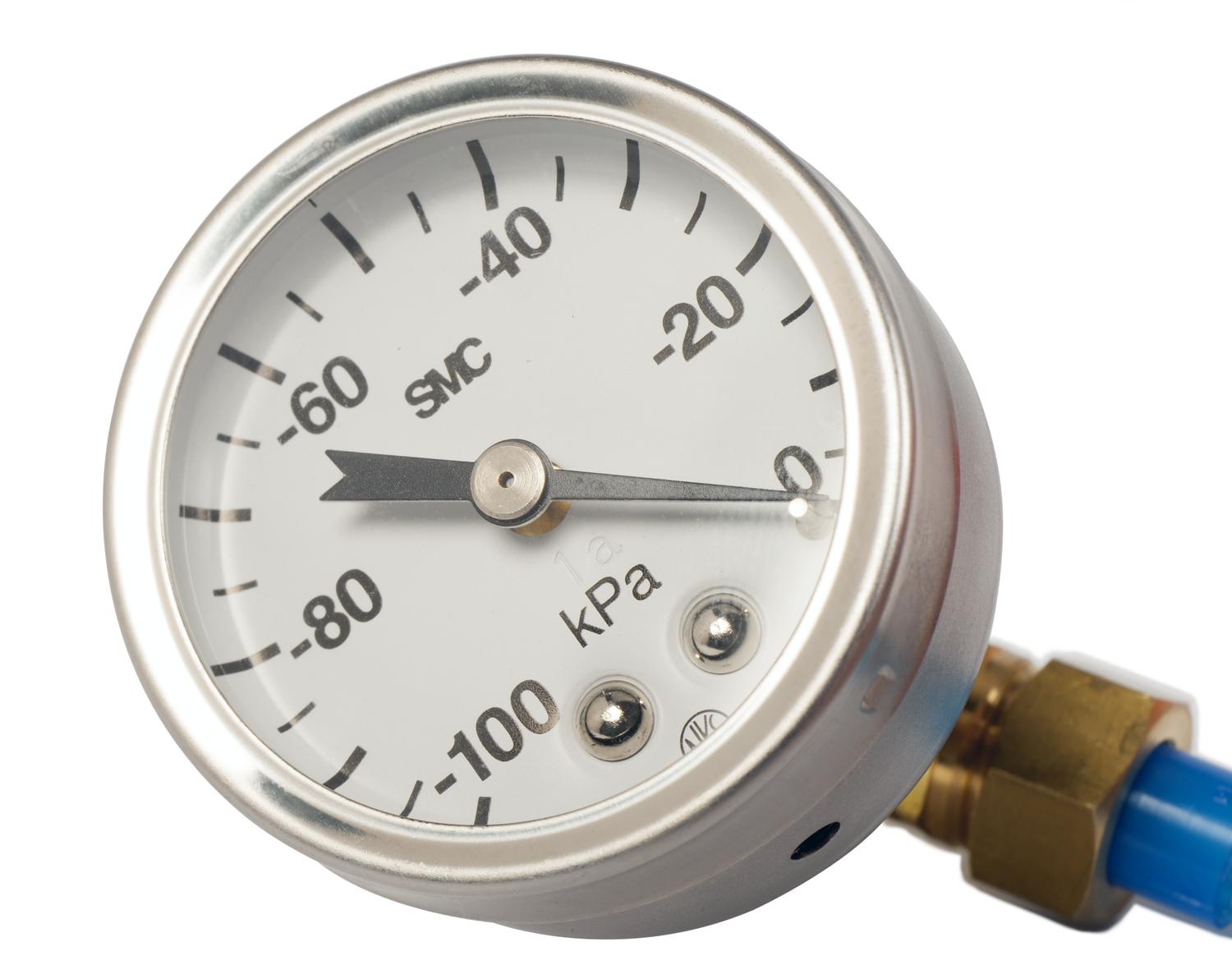

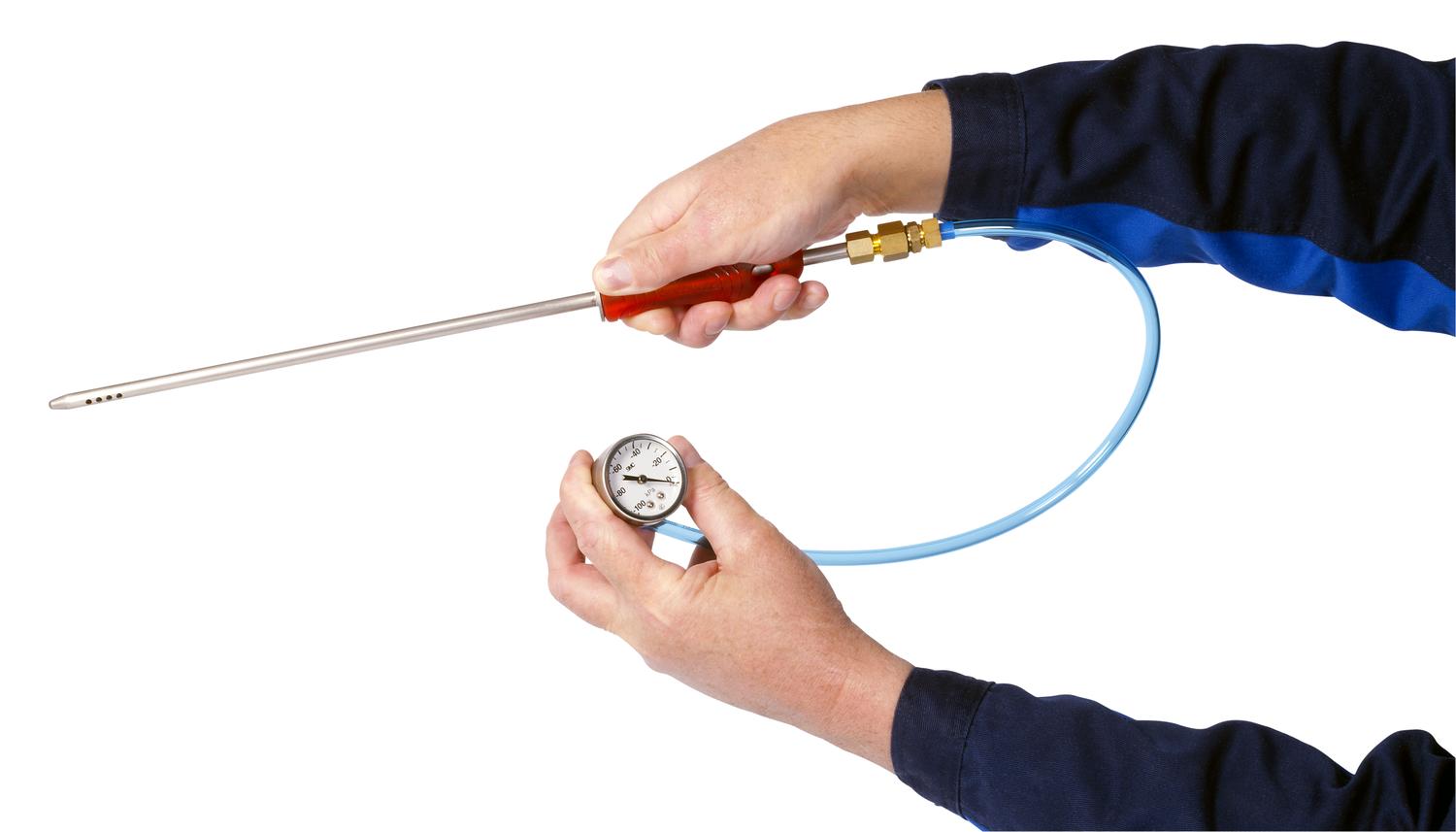

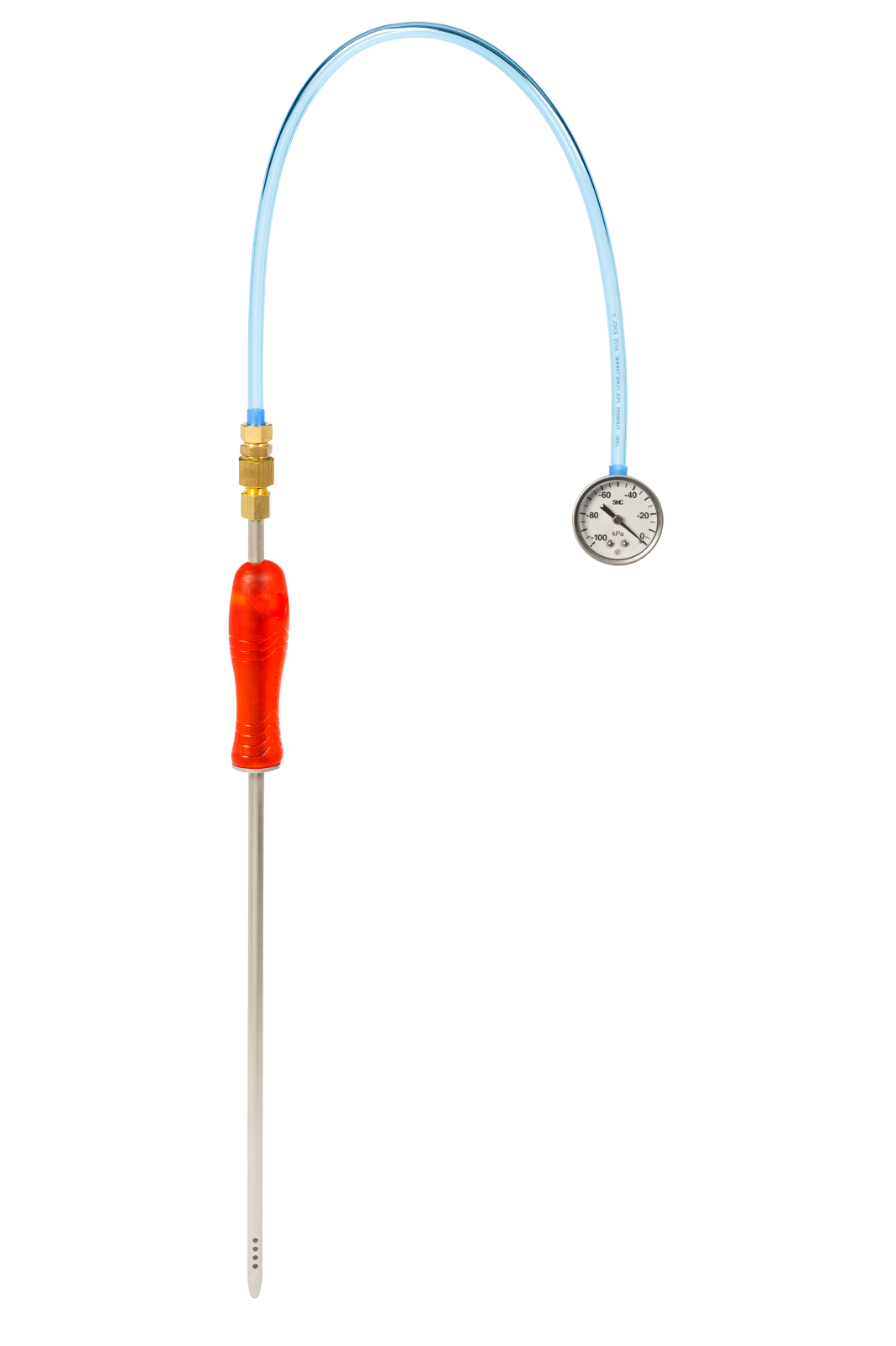

The RealVac is basically a portable manometer with an extension, to measure inside the uhle (or felt suction) box. It comes standard with a metrical Bourdon-type manometer (0 to -100 kPa), but you can also order it without the manometer and use your own manometer with a R 1/8”connection.

Where should the RealVac be inserted if the uhle box is totally closed?

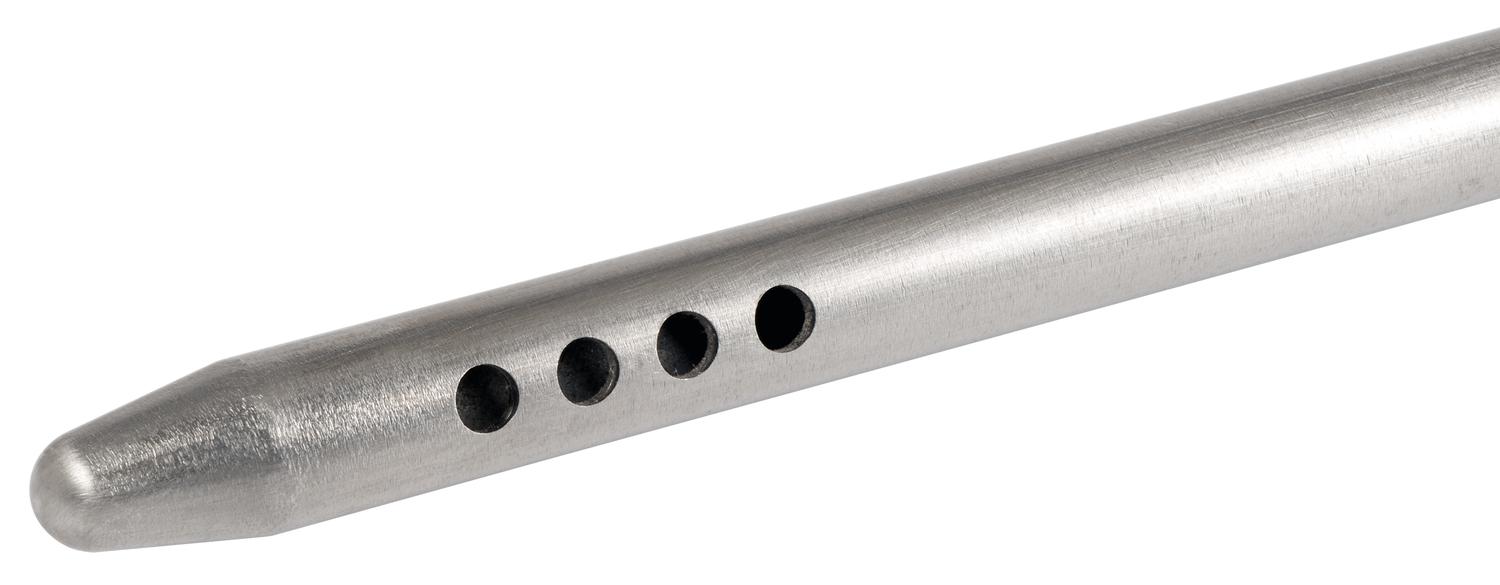

Normally, the press felt covers the full open area of the uhle box (to avoid loss of vacuum). The tip of the RealVac has been designed in a way that you can easily lift the felt a bit and then enter the vacuum zone to measure the true vacuum in the suction box.

Can I use the RealVac in the forming section too?

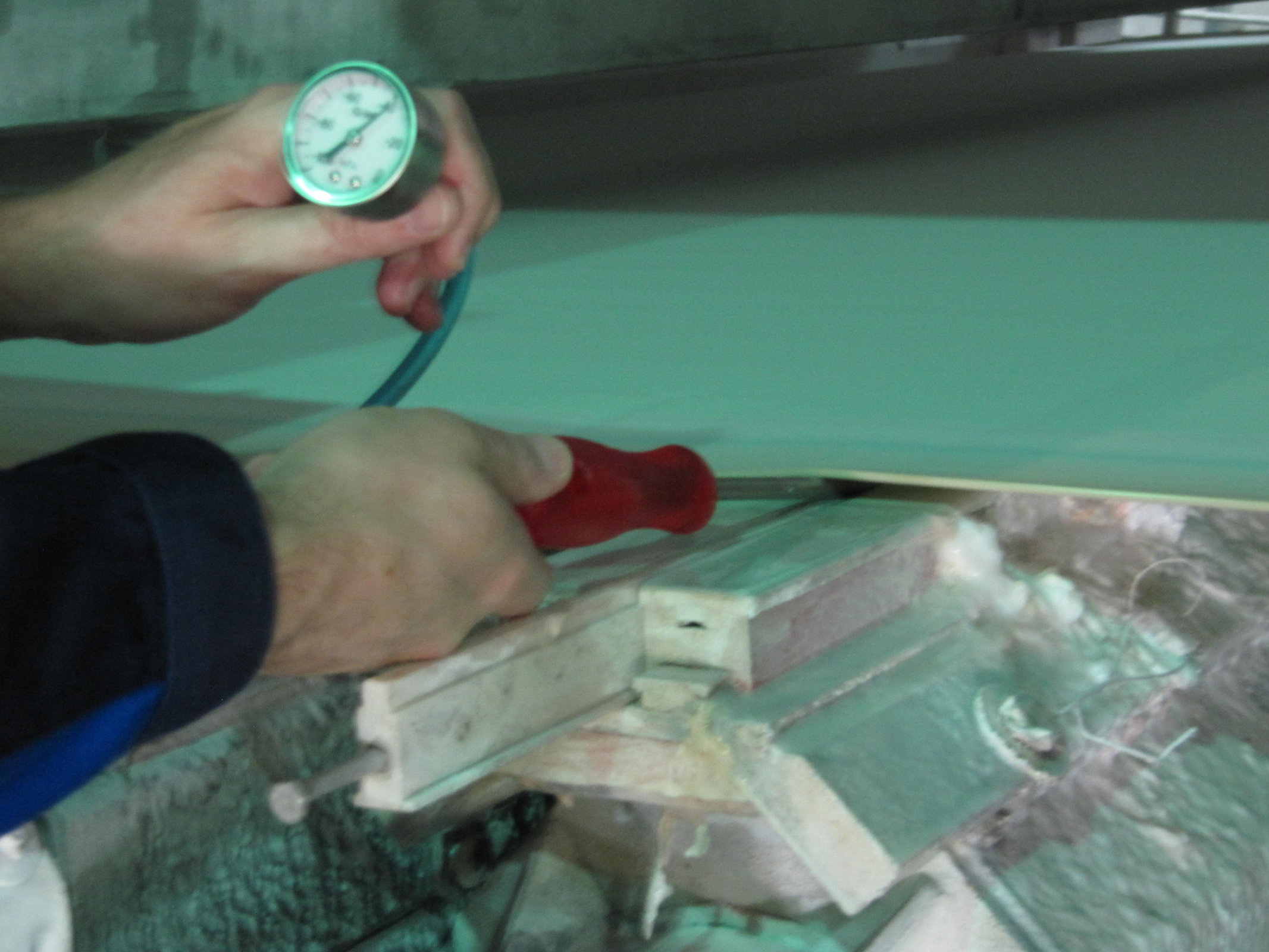

To be able to enter the vacuum zone, you need to lift the press felt a little, as shown in this picture. In the forming section, the sheet lays on the fabric and lifting the forming fabric would destroy the sheet. Therefore, the RealVac can only be used in the press section.

I want to measure in another unit than kPa.

That is no problem, you can attach any manometer as long as it has an R 1/8” connection. So can use your own manometer in PSI, or mmHG, or any other unit.

Can I use the RealVac on drilled uhle box covers?

Although the RealVac was originally designed for slotted uhle boxes, it can also be used with modern drilled uhle boxes. The probe is 8 mm | 1/3” thick, so it will be easy to enter one of the holes closer to the edge.

SpecificationsRealVac
Total weight0.3 kg | 0.66 lbs.
Tube materialStainless steel
Tube dimensions270 x Ø8 mm | 10.6 x Ø 0.32"
Manometer measuring range and unit-100 to 0 kPa
Manometer dimensionsØ 43 mm | Ø 1.65"
Manometer connectionR 1/8"
Weight0.3 kg | 0.66 lbs
DOWNLOAD BROCHURE


Get your RealVac Quote

Get your quote instantly by adding it to your shopping basket and pressing the Request Quote button, or buy directly in our ONLINE STORE.

Any questions? Just reach out and our sales team will contact you shortly.
